ED-CRX-A

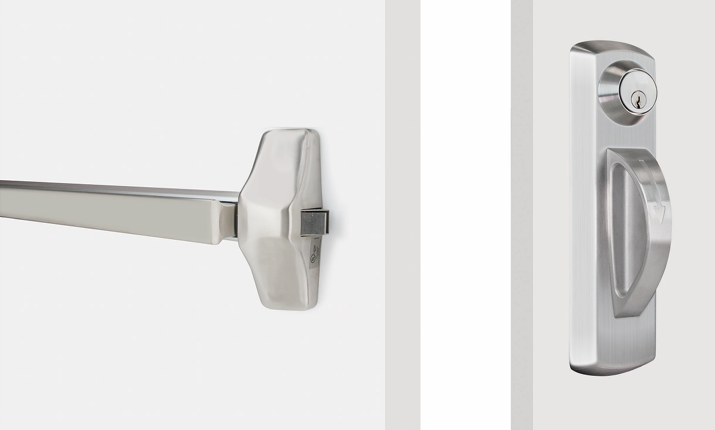

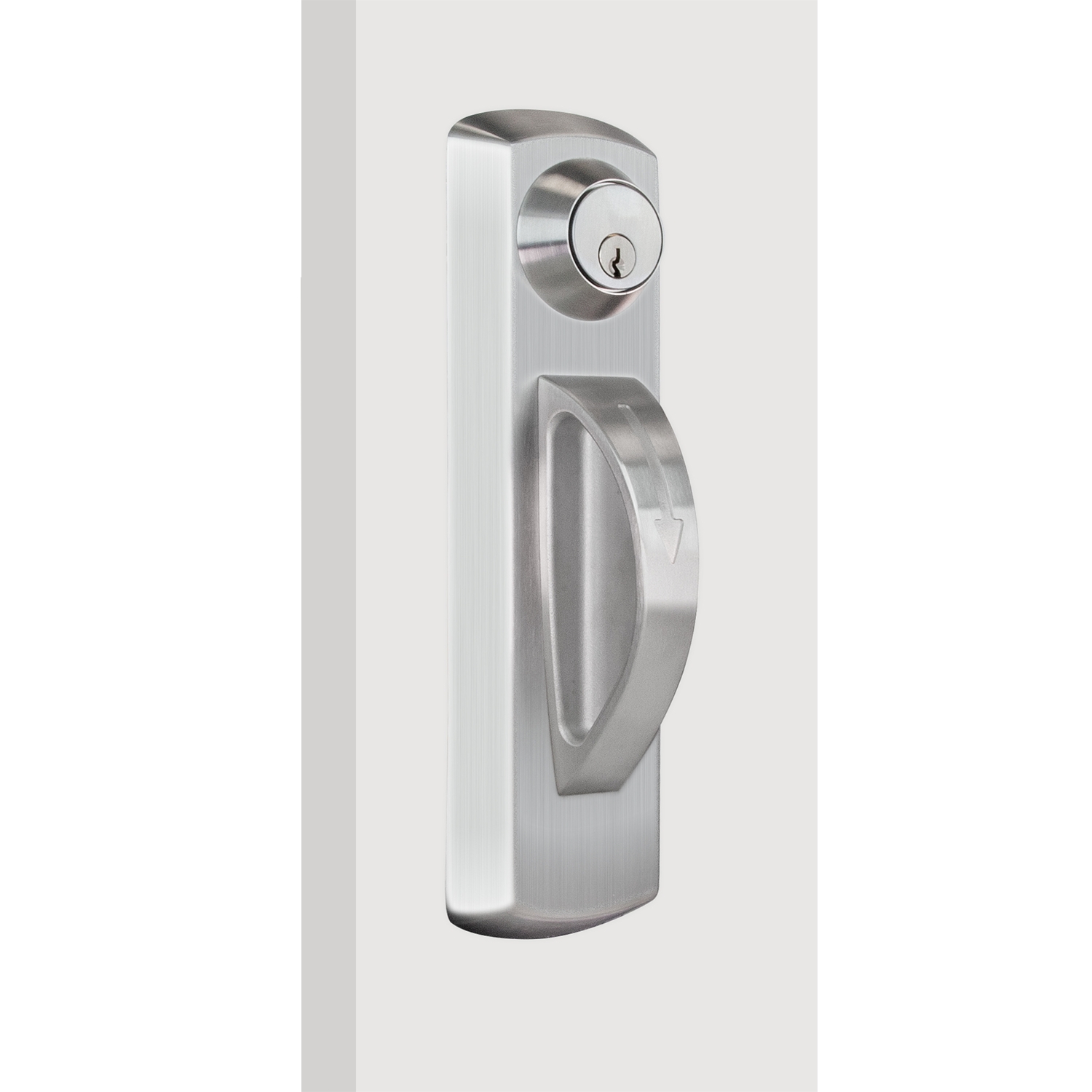

The ED-CRX-A series is a heavy duty, robust ligature resistant arch lever trim designed to be paired with exit devices. Constructed from stainless steel, this trim provides exceptional durability for demanding environments. Featuring our 5-point ligature resistant arch levers, this trim is ideal for behavioural health facilities, detention centers, and psychiatric wards.
FEATURES
- Stainless steel construction
- 5-point ligature resistant
- Nightlatch and passage functions
- Compatible with TownSteel Rim, SVR, and CVR
Please contact a local sales representative in your area for more information and to get started.
We have built our company around the promise of creating durable hardware solutions for your projects. Our complete product line is the result of decades of determined engineering. This allows TownSteel to provide you with the right product to meet your exact specifications.
Specifications
Certifications
ANSI/BHMA A156.3 Grade 1 Certified
UL 10C 3-hour
Compliance
Meets requirements of the Americans with Disabilities Act
Series
ED-CRX-A
Handings
LHR / RHR
Door Thickness
1-3/4" standard door thickness
For more options consult factory
Backset
See exit device, wide stile trim
Door Prep
4 mounting posts, 7" CTC. Spindle CL 3-1/2" CTC from top and bottom mounting posts.
Exit Device Compatability
TownSteel 1100, 9700, 8900 Rim/SVR devices, TownSteel 9747 CVR
6 pin Schlage® "C" Keyway - Standard
Small Format IC Housing, 6 pin, less core
Small Format IC Housing, 7 pin, less core
Small Format Interchangeable Core, Best "A" 6 pin core
Small Format Interchangeable Core, Best "A" 7 pin core
