CSR-1/CSRC-1, Low Profile Flat Rose
The CSR-1/CSRC-1 Series Cylindrical Lockset is designed for Multi-Family, Senior Living, Dorms, and Light Commercial Applications. The CSRC Series combines the physical security of an ANSI Grade 2 mechanical locking mechanism with the security and functionality needed to meet various opening requirements.
FEATURES
- Fast and easy installation
- Low profile rose design
- Clutched design available for highly abusive environment
- Concealed mounting screws
- Removable thru-bolt and adjustable mounting plate
Please contact a local sales representative in your area for more information and to get started.
Features
- Fast and easy installation
- Low profile rose design
- Clutched design available for highly abusive environment
- Concealed mounting screws
- Removable thru-bolt and adjustable mounting plate
Options
(F75) Passage
(F76A) Privacy
(F77) Patio
(F82) Entrance/Office
(F84) Classroom
(F86) Storeroom
(F87) Asylum
(F109) Entry/Office
(F110) Intruder Classroom
(F111) Exit/Communicating Passage
(F113) Exit/Communication Classroom
(SD) Single Dummy
(PD) Pair Dummy
Quest
Sentinel
Gala

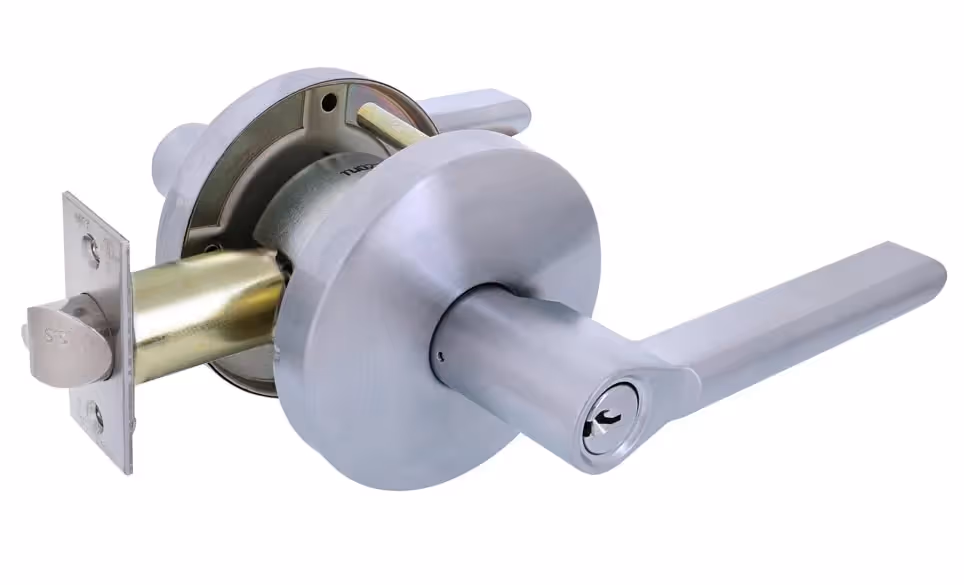

Essen
Specifications
Certifications
ANSI/BHMA A156.2 Grade 2 Certified
UL 10C 3-hour
Compliance
Meets requirements of the Americans with Disabilities Act
Meets guidelines of the Buy American Act
Series
CSRC-1
Lockbodies
Clutched
Handings
Non-handed
Backset
2-3/4" standard
2-3/8" optional
5" optional
Faceplate
1-1/8" x 2-1/4", square corner
Door Thickness
1-3/8" - 1-7/8"
Strike
ASA strike standard, T-Strike optional
Latch Bolt
1/2" throw, stainless steel
Rose
21/32" projection, 3-21/64" diameter, low-profile
Door Prep
Standard 161 with thru-bolts
Trim
Stainless steel rose, zinc casting lever, plated to match finish symbols
6 pin Schlage® "C" Keyway - Standard
Small format IC, SFIC, Less cylinder core option
Schlage® Large Format IC less core available
