XTRX-L-303, Motorized

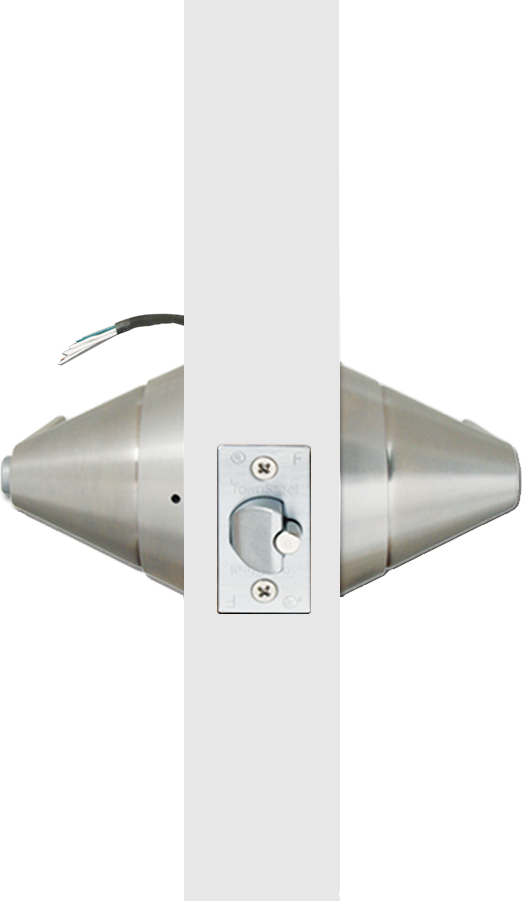

XTRX-L-303 is an ANSI Grade 1 motorized cylindrical lock with ligature-resistant trim – lever. XTRX-L-303 is suitable for healthcare facilities housing patients at risk. This product is equipped with a ligature-resistant stainless steel lever and tamper-resistant mounting screws for added security. The XTRX-L-303 can be mounted on both wood and metal doors.
FEATURES
- Motorized stainless steel sectional trim
- Ligature resistant stainless steel lever
- Through-bolt mounting with tamper resistant screws
- Field adjustable for Fail Safe or Fail Secure
- 12-24VDC
Please contact a local sales representative in your area for more information and to get started.
Features
- Motorized stainless steel sectional trim
- Ligature resistant stainless steel lever
- Through-bolt mounting with tamper resistant screws
- Field adjustable for Fail Safe or Fail Secure
- 12-24VDC
Options
Ligature resistant stainless steel lever
Sectional
Specifications
Certifications
ANSI/BHMA A156.2 Grade 1 Certified
UL 10C 3-hour
Compliance
Meets requirements of the Americans with Disabilities Act
Meets guidelines of the Buy American Act
Voltage
12VDC or 24VDC
Fail Safe
Available
Fail Secure
Available
Series
XTRXL
Lockbodies
Clutched
Handings
Non-handed
Backset
2-3/4" standard
2-3/8" optional
5" optional
Faceplate
1-1/8" x 2-1/4", square corner
Door Thickness
1-3/4" - 2"
Strike
ASA strike standard, T-Strike optional
Latch Bolt
1/2" throw, stainless steel
Rose
3-5/8" diameter, stainless steel
Door Prep
Standard 161
Mounting
Though-bolt, tamper resistant mounting screws, for wood and metal door
Lever Parameters
Stainless steel
6 pin Schlage® "C" Keyway - Standard
6 pin IC core with Best® “A” Keyway
7 pin IC core with Best® “A” Keyway
Corbin® Large Format IC less core available, for 6 pin core
Schlage® Large Format IC less core available
High security 6 pin cylinder with TownSteel “L” keyway
High security 7 pin IC core with Townsteel ® “L” Keyway
