Aegis SLD
The Aegis SLD is a heavy-duty, robust deadbolt featuring a large, easy-to-read message indicator. Desgined to fit perfectly into a standard 161 door prep, it offers quick and straightforward installation. Its stainless steel trim provides exceptional durability for demanding environments. When paired with our Aegis Series Indicator Locks, facilities can maintain a consistent, uniform appearance across all openings.
FEATURES
- Designed to perfectly fit into existing 161 door preps, making installation fast and easy
- Single large message indicator on both sides of the opening allows occupants or personnel in the hallway to identify a lock’s status in an instant
- Cast and machined trim provides a barrier to most adverse conditions

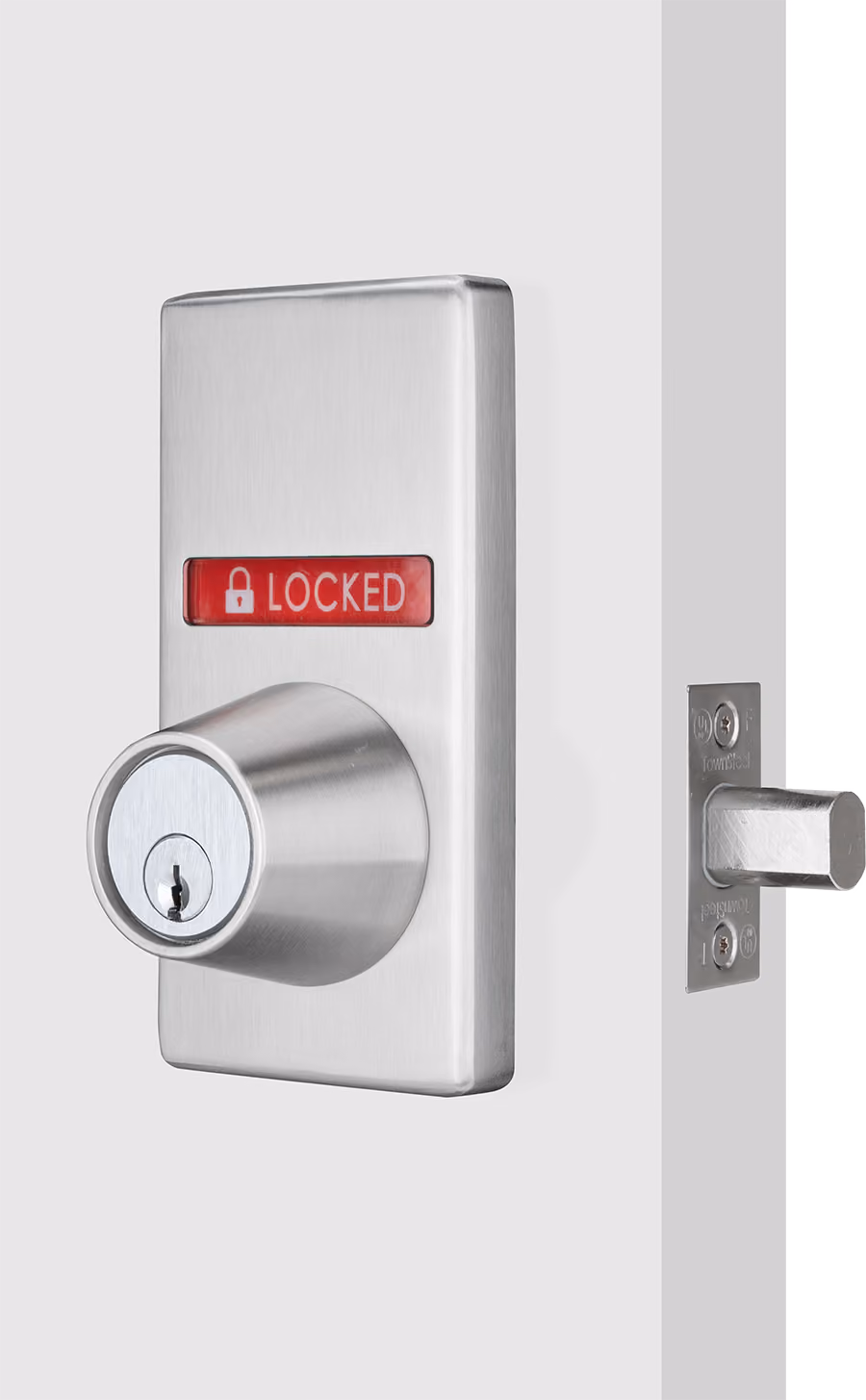

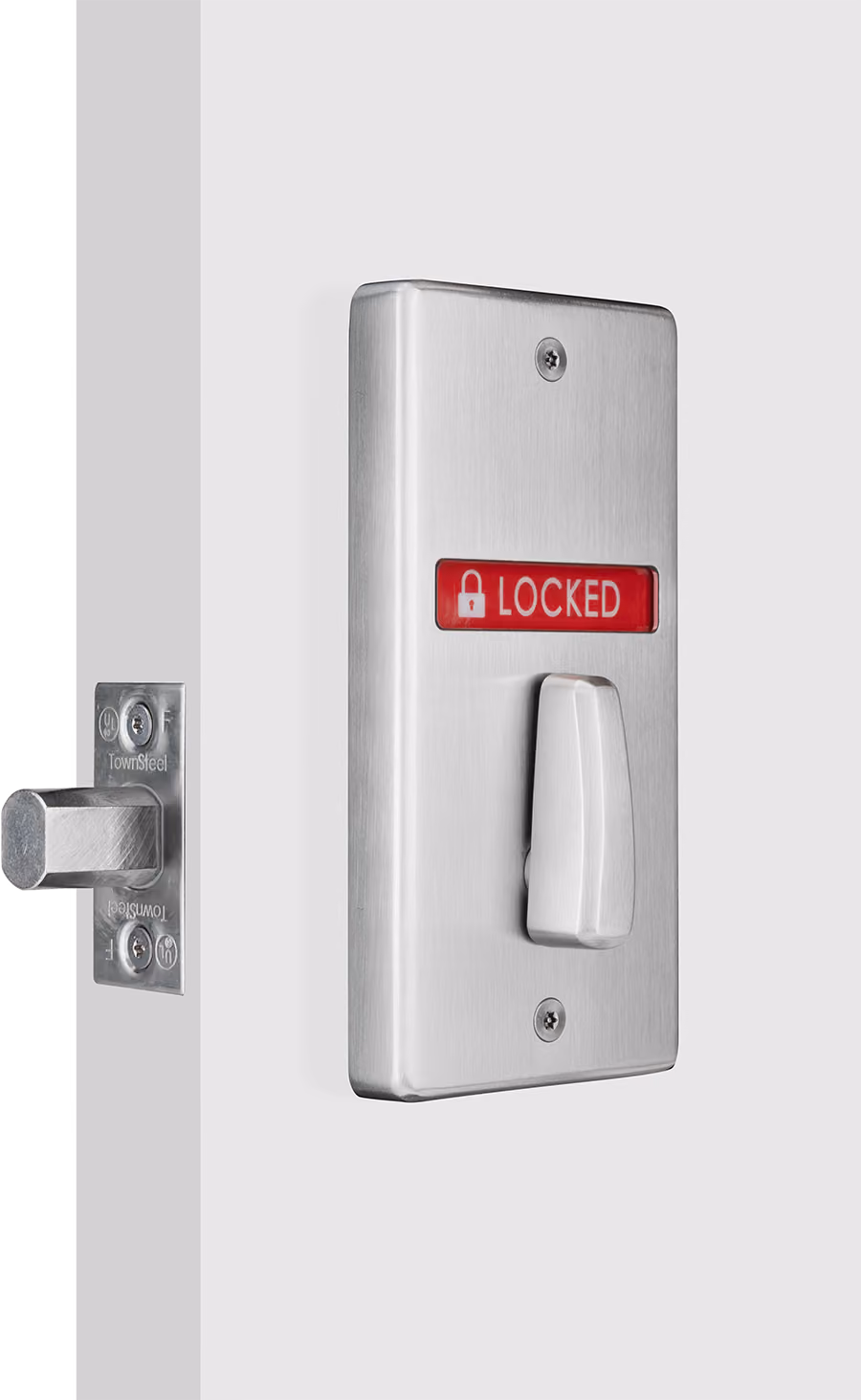

- Available with a cylinder on the outside and a thumb turn on the inside or in a double cylinder configuration
Please contact a local sales representative in your area for more information and to get started.
Features
- Designed to perfectly fit into existing 161 door preps, making installation fast and easy
- Single large message indicator on both sides of the opening allows occupants or personnel in the hallway to identify a lock’s status in an instant
- Cast and machined trim provides a barrier to most adverse conditions
- Available with a cylinder on the outside and a thumb turn on the inside or in a double cylinder configuration
Options
(F61) Deadbolt operated by key from outside and by turn from inside
(F62) Deadbolt operated by key from either side
Specifications
Certifications
ANSI/BHMA A156.36 Grade 1 Certified
UL 10C 3-hour
Series
Aegis SLD
Backsets
2-3/8", standard
2-3/8", optional
Door Thickness
1-3/4"
Door Prep
Standard 161
Handing
Field Reversible
LH / RH
Deadbolt
1” throw, stainless steel
Escutcheon
10-3/16” x 3-5/32” x 5/8”, stainless steel
Strike
1-1/8" x 2-3/4" square corner
6 pin Schlage® "C" Keyway - Standard
SFIC, less core
6 pin IC with Best® “A” Keyway
7 pin IC with Best® “A” Keyway
