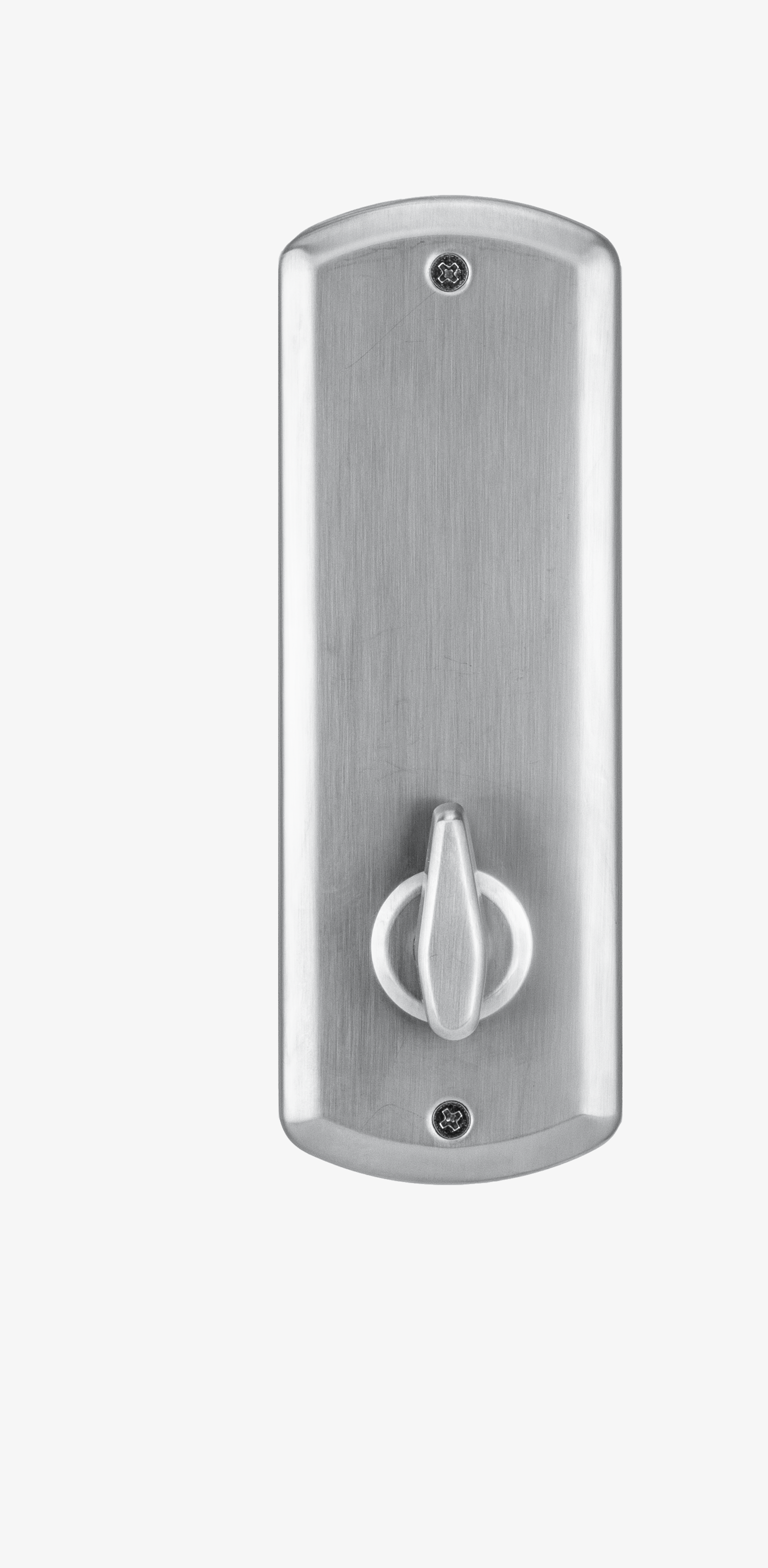

t-Smart 7000
t-Smart 7000 is a electronic deadbolt lock with thumbturn that pairs with the AegisSecure™ management system making it a breeze with our user-friendly interface, with monitoring and analyzing access activity being crucial. Our system has you covered. With support for unlimited audit trails, you can remotely retrieve detailed event logs and access history for comprehensive monitoring and analysis. To provide higher security and longevity of the lock, the deadbolt does not have an auto-lock feature. It must be extended manually using the thumb-turn.
FEATURES
- Smart lock with the ability to rotate the outside thumbturn to extend deadbolt, providing higher security
- AegisSecure access control system
- Wireless BLE configuration from connected AegisSecure App.
- Standard multi reader technology MIFARE®, Bluetooth®, Pin Code, and 915 MHz communication capabilities.
- Networked real-time communication is available with the GW7-915 Gateway and AegisSecure System.
- Weather resistant design.
- Up to 1 year of battery life.
Please contact a local sales representative in your area for more information and to get started.
Features
- Smart lock with the ability to rotate the outside thumbturn to extend deadbolt, providing higher security
- AegisSecure access control system
- Wireless BLE configuration from connected AegisSecure App.
- Standard multi reader technology MIFARE®, Bluetooth®, Pin Code, and 915 MHz communication capabilities.
- Networked real-time communication is available with the GW7-915 Gateway and AegisSecure System.
- Weather resistant design.
- Up to 1 year of battery life.
Options
Escutcheon
Specifications
Certifications
ANSI/BHMA A156.36 Grade 1 Certified
UL10C 3-hour
FCC Part 15
Compliance
Meets requirements of the Americans with Disabilities Act
Users
Up to 889 (Maximum database storage capacity of lock). Varies on software database capacity.
Audits
Up to 2,000 (Maximum database storage capacity of lock). Varies on system audit storage capacity.
Credential Verification Time
MIFARE credential: ≤ 1 second at ≤ ½” distance
Mobile: mobile device dependent within 20’
Visual Communications
LED (red, yellow, green)
Communication Standards
2.4 GHz Wi-Fi® (IEEE 802.11b/g/n)
WPA2, WPA, WEP, 802.1x
Bluetooth® low energy (version 4.2)
Transport Layer Security (TLS) version 1.2
Advanced Encryption Standard (AES), 128-bit Gateway communication range Up to 100’ in typical building environments.
A detailed site survey is recommended for correct location and number of gateways.
Reference GW7-915 Gateway data sheet for additional detail.
Connectivity Options
Bluetooth via mobile device (send updates at the lock)
GW7-915 Gateway (real-time communication)
Battery Life
Uses 4 AA batteries; Up to 1 year
Operating Temperature
Exterior: -31° to 151°F (-35° to 66°C)
Interior: 32° to 120°F (0° to 49°C) (battery)
Operating Humidity
0 - 100%
Available Status Signals
Request-to-exit, Battery status, Communication status
Reader Credential Technologies
Smart (13.56 MHz), Bluetooth Low Energy (BLE) (2.4 GHz), and Pin Codes
Reader Standards
ISO 14443
Reader Maximum Read Range
Smart: up to 1/2”
Bluetooth Low Energy: up to 20’
Reader Smart Credential Support
Secure sector compatibility: MIFARE Classic® EV1
Reader Mobile Credential Support
AegisConnect Mobile App Bluetooth®
Series
e-Smart
Backsets
2-3/8" - 2-3/4" adjustable
Door Thickness
1-3/4"
Door Prep
Standard 161 prep
Handings
Handed
LH / RH
Strike
1-1/8" x 2-3/4", square corner
Faceplate
1" x 2-1/4" with round corners, standard
1-1/8" x 2-1/4" with sqaure corners, optional
Escutcheon
Wrought steel or zinc alloy, plated to match finish symbols
Deadbolt
1" throw deadbolt with anti-saw pins, optional drive-in deadbolt
