Aegis ESG
The Aegis ESG is a versatile and durable exit device trim with large message indicators on both sides of the trim. Designed from the m-Kestros Series, it is designed to pair with many existing exit devices, offering a cost-effective solution for retrofitting and upgrading security without replacing entire exit device systems. Featuring multiple functions for many different applications, it enhances security by restricting access from unauthorized personnel. The ESG delivers both convenience and reliable protection to high traffic areas.
FEATURES
- The Aegis ESG’s indicator add-on allows easy and affordable retrofitting on existing devices without purchasing entire new sets of exit devices.
- Indicator add-on is compatible with TownSteel 1100/1200/8900/9700 exit devices, Marks® M9900, Detex® 10, Von Duprin® VD22/99, Sargent® 8000, Corbin Russwin® ED5000, Dorma® 9000, Precision® PHI 2000, Falcon® 20, Hager® 4700, Cal Royal® 2200, and Accentra® (Yale) 2100/6100/7100. Note: Exit Device Formats are for Rim and SVR Less Bottom Rod only.

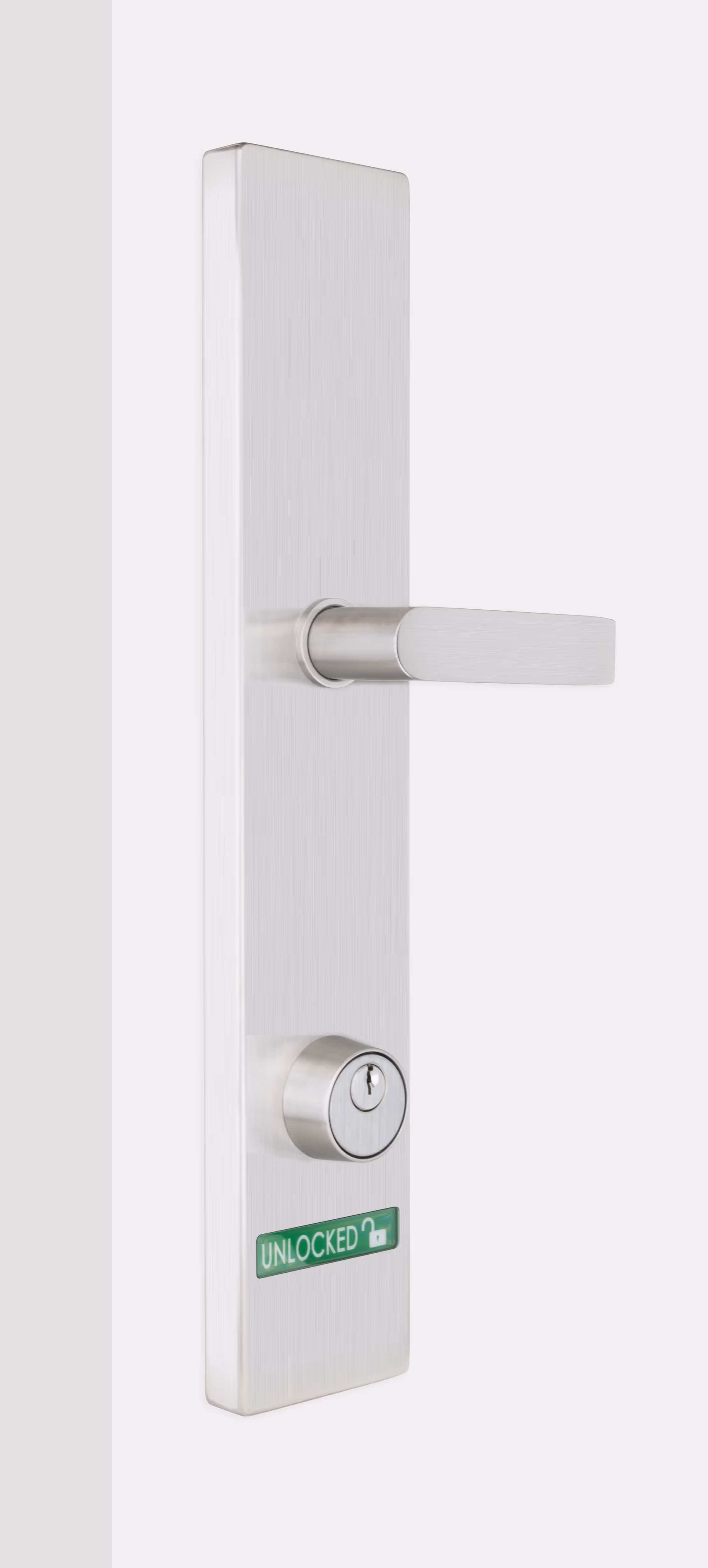

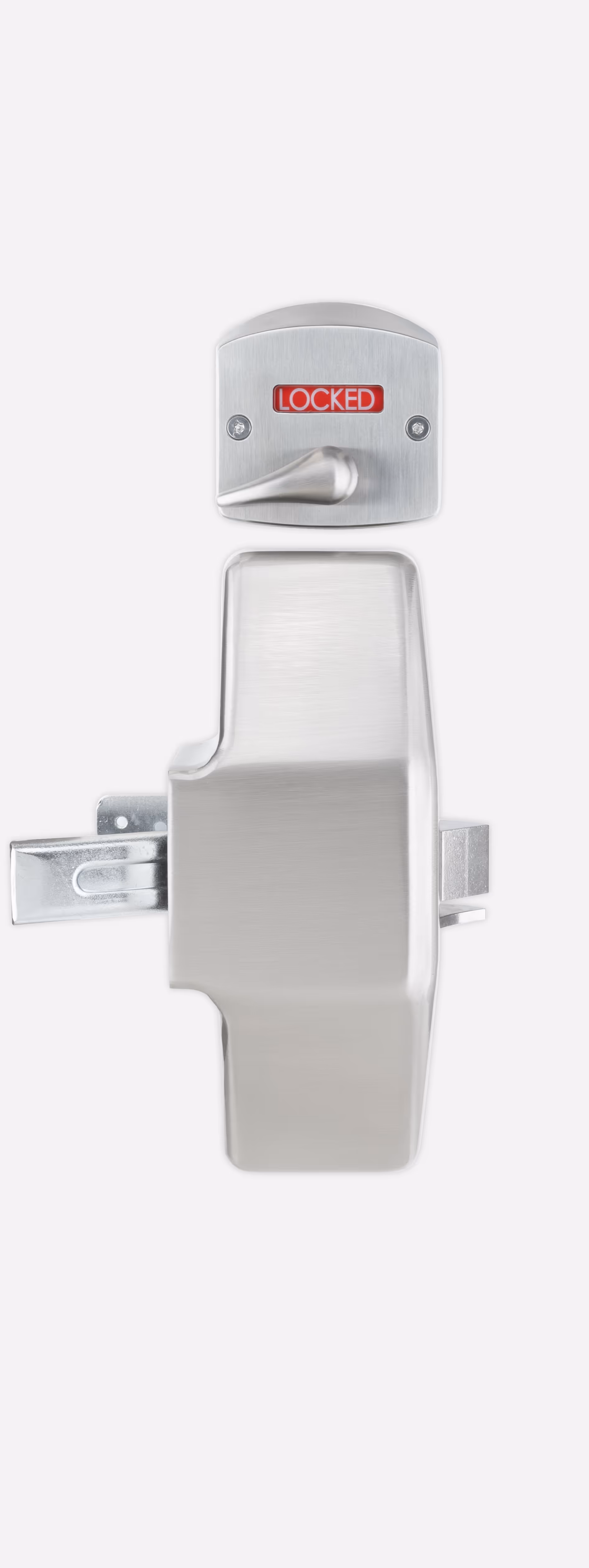

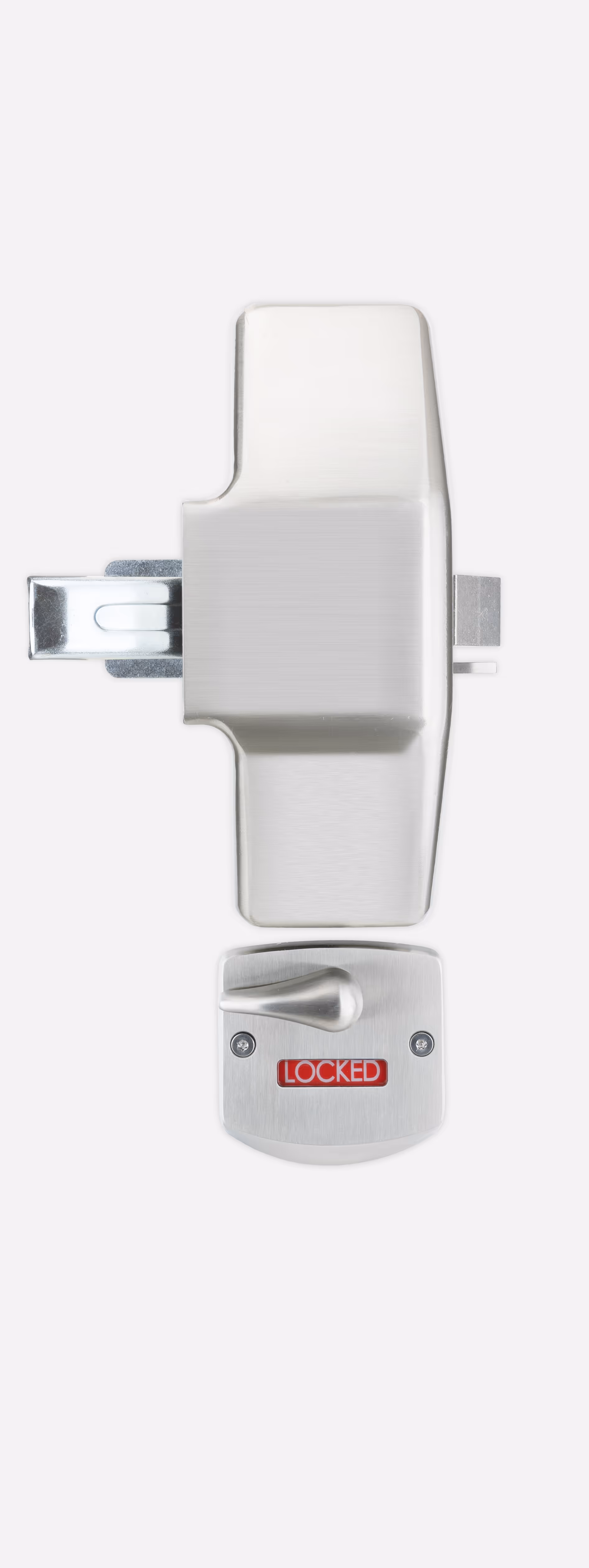

- Large message indicator on both sides of the opening allows occupants or personnel in the hallway to identify a lock’s status in an instant.
- Cast and machined heavy duty stainless steel trim provides a barrier to most adverse conditions
- Available formats include: Single cylinder/blank, single cylinder/thumbturn, emergency release/thumbturn, or cylinder/cylinder.
Please contact a local sales representative in your area for more information and to get started.
We have built our company around the promise of creating durable hardware solutions for your projects. Our complete product line is the result of decades of determined engineering. This allows TownSteel to provide you with the right product to meet your exact specifications.
Specifications
Certifications
ANSI/BHMA Grade 1 Certified exit device trim
UL 10C 3-hour
Compliance
Meets requirements of the Americans with Disabilities Act
Series
m-Kestros-ESG
Handings
Handed
LHR / RHR
Backsets
Refer to your Rim or SVR LBR exit device installation instructions
Door Thickness
1-3/4”, standard
2-1/4”, optional
*For custom thickness please consult factory
Indicator Trim
Indicator on both sides, standard
Indicator on inside or Outside only, optional
Exit Device Type
Rim, SVR LBR
Cylinder Formats
Compatible with mortise conventional cylinders, interchangeable core housings
Compatible only with 1-1/4” - 1-1/2” cylinder lengths
6-pin with Schlage® “C” Keyway, standard
6-pin small format IC, less core
7-pin small format IC, less core
Corbin® large format IC, less core
Schlage® large format IC, less core
High security 6-pin IC core with TownSteel “L” keyway
High security 7-pin IC core with TownSteel “L” keyway
Less Cylinder*
Classic Schlage® conventional KIK cylinder housing, less KIK cylinder
*If using your own cylinder, please consult factory.
