MSS, Motorized

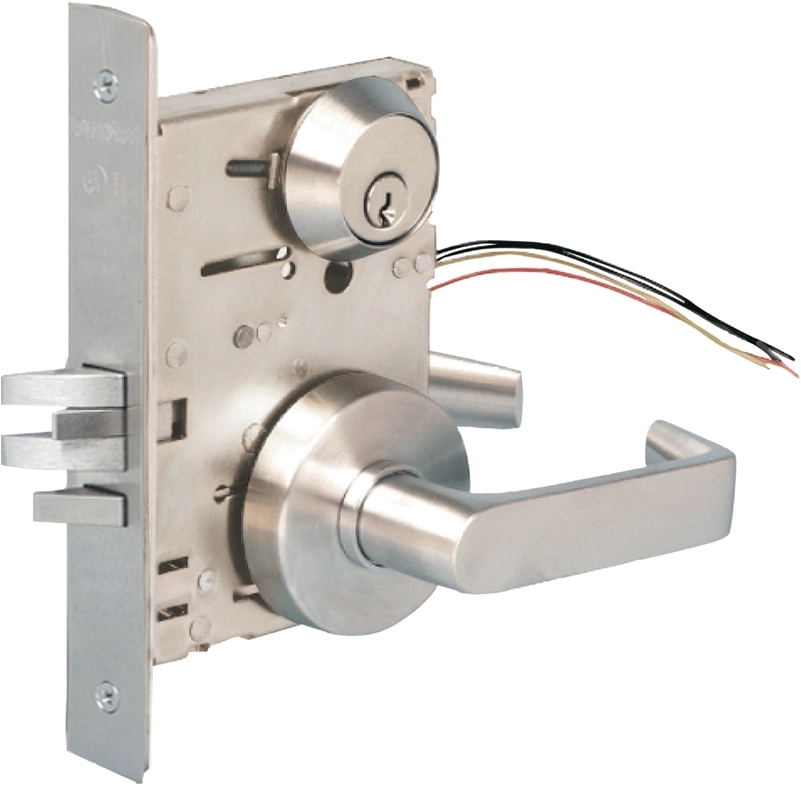

The MS Series Motorized Mortise Lock is an ANSI/BHMA A156.13 Grade 1 Certified lock designed to handle single-opening, stand-alone applications or can be readily integrated into sophisticated access control systems.
See the Designer Trims Catalog for more designer levers and rose styles.
FEATURES
- Sectional trim
- Single opening
- Stand-alone applications
- Ready for access control system integration
- Optional status sensors: REX (request-to-exit), PRIV (privacy), DAJ (door ajar), MKO (mechanical key override)
Please contact a local sales representative in your area for more information and to get started.
We have built our company around the promise of creating durable hardware solutions for your projects. Our complete product line is the result of decades of determined engineering. This allows TownSteel to provide you with the right product to meet your exact specifications.
Specifications
Certifications
ANSI/BHMA A156.13 Grade 1 Certified
UL 10C 3-hour
Compliance
Meets requirements of the Americans with Disabilities Act
Meets guidelines of the Buy American Act
Other Switch Wire Size
26-28AWG
Fail Safe
Available
Fail Secure
Available
Motor
12-24V VDC
Monitoring Capability
EX (request-to-exit), PRIV (privacy), DAJ (door ajar), MKO (mechanical key override)
Series
MS
Lockbodies
Clutched
Rigid
Auto Deadbolt
Handings
Field Reversible
LH / RH / LHR / RHR
Door Thickness
1-3/4" standard
Request for custom
Backset
2-3/4"
Strike
ANSI strike plated/stainless steel
Latch Bolt
3/4" projection, stainless steel, split, anti-friction
Guard Bolt
Stainless steel
Rose
Brass or stainless steel, 2-3/4" in diameter
SC, 6 pin Schlage® "C" Keyway - Standard
SFIC6, Small Format IC, with or without core available, 6 pin core
SFIC7, Small Format IC, with or without core available, 7 pin core
SLFIC, Schlage® large format IC less core
CLFIC, Corbin® large format IC less core
HS6, High security 6 pin with Townsteel® "L" Keyway
HS7, High security 7 pin IC core with Townsteel ® "L" Keyway
