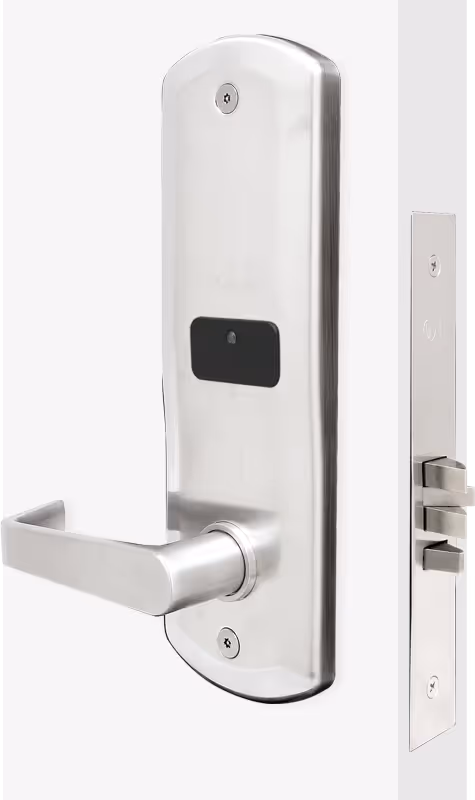

XME-9000
The XME-9000 Series is an ANSI/BHMA A156.13 Grade 1 Certified standalone electronic classroom security function lock that provides remote lockdown capability while ensuring the security of a Grade 1 heavy-duty mortise lockset. It features a classroom lockdown function designed for integration with the School Safety Program. See available options for more details.
FEATURES
- Heavy-duty, standalone RFID mortise lock
- Mechanical key override
- Use the keypad to lock or unlock the outside lever
- Heavy-duty Grade 1 cylindrical chassis
- Both clutched and rigid lever trims are available
- Various cylinder and keying options
Please contact a local sales representative in your area for more information and to get started.
Features
- Heavy-duty, standalone RFID mortise lock
- Mechanical key override
- Use the keypad to lock or unlock the outside lever
- Heavy-duty Grade 1 cylindrical chassis
- Both clutched and rigid lever trims are available
- Various cylinder and keying options
Options
XME-9010: Rigid
XME-9020: Clutched
XME-9030: Rigid, High Security
XME-9040: Clutched, High Security
Sentinel
Quest
Gala
Designer lever styles upon request
Escutcheon
Specifications
Certifications
ANSI/BHMA A156.13 Grade 1 Certified, A156.25 Meets Industry Standard
UL 10C 3-hour
FCC Part 15
Compliance
Meets requirements of the Americans with Disabilities Act
Meets guidelines of the Buy American Act
Series
XME
Lockbodies
Rigid
Handings
LH / RH / LHR / RHR
Door Thickness
1-3/4"
Request for custom
Backsets
2-3/4"
Strike
1-1/4" X 4-7/8", ASA strike standard
Latch Bolt
3/4" projection, stainless steel, split, anti-friction
Guard Bolt
Stainless steel
Escutcheon
Wrought steel/zinc alloy, plated to match finish symbols
Lever Parameters
Brass/zinc alloy
SC, 6 pin Schlage® "C" Keyway - Standard
SFIC6, Small Format IC, with or without core available, 6 pin core
SFIC7, Small Format IC, with or without core available, 7 pin core
SLFIC, Schlage® large format IC less core
CLFIC, Corbin® large format IC less core
HS6, High security 6 pin with Townsteel® "L" Keyway
HS7, High security 7 pin IC core with Townsteel ® "L" Keyway
