MRXA-R
The MRXA-R gives you the capability to effortlessly convert your pre-existing door prep into a ligature resistant lock. By eliminating the necessity for specific mortise door preps, this innovative solution streamlines the process of replacing and upgrading your outdated lock, ensuring a fast and easy installation.

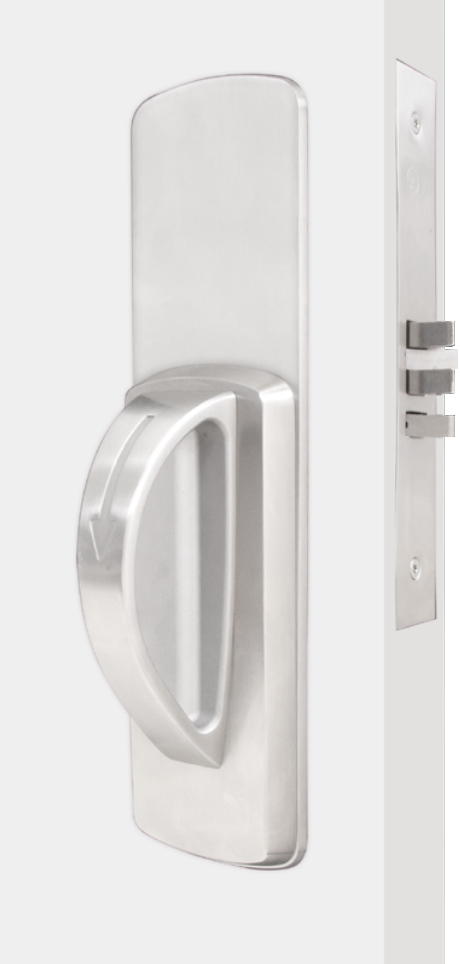

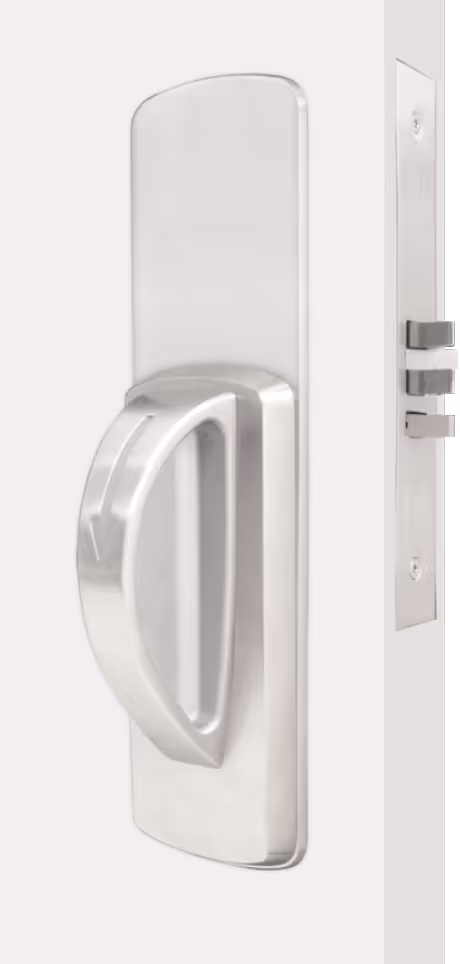

The MRXA-R is a 5-point ligature-resistant stainless steel arch trim which showcases a large escutcheon underplate, purposefully designed to conceal any unnecessary holes that may be present. This aesthetic feature enhances the overall appearance of the lock while maintaining its functional integrity. It is suitable for behavioral, mental health, and psychiatric healthcare facilities housing at-risk patients.
FEATURES
- 5-point ligature-resistant stainless steel arch trim
- Designed to fit into most competing brands mortise door preps, making installation fast and easy
- Includes cylinder
Please contact a local sales representative in your area for more information and to get started.
Features
- 5-point ligature-resistant stainless steel arch trim
- Designed to fit into most competing brands mortise door preps, making installation fast and easy
- Includes cylinder
Options
(F05) Classroom
(F07) Storeroom or Closet
(F13) Dormitory or Exit
(F19) Privacy or Bathroom
(F30) Institutional
(F32) Intruder Latch bolt
Ligature Resistant Arch Lever, Stainless steel
Escutcheon
Specifications
Certifications
ANSI/BHMA A156.13 Grade 1 Certified
UL 10C 3-hour
Compliance
Meets requirements of the Americans with Disabilities Act
Meets guidelines of the Buy American Act
Series
MRXA-R
Lockbodies
RM : Door prep Marks® 5 Series / Dorma® M9000 Series
RC : Door prep Corbin® ML2000 Series
RB : Door prep TownSteel MS Series / Best® 35/45 Series
RS : Door prep Sargent® 8200 Series
RL : Door prep Schlage® L Series
Handings
Handed
LH / RH / LHR / RHR
Door Thickness
1-3/4"
Request for custom
Backsets
2-3/4"
Strike
1-1/4" X 4-7/8", plated steel or stainless steel, lipped ANSI strike
Latch bolt
3/4" projection, stainless steel, anti-friction, split
Faceplate
1-1/4" wide, brass or stainless steel
Deadbolt
1" throw, stainless steel, anti-saw hardened pins
Guard Bolt
Stainless steel
Escutcheon
12-3/32" x 3-1/32" x 2-9/16" , stainless steel
Screws
Security TORX® screws
Keying
KD standard; KA, MK, GMK, GGMK, and Construction keys are also available
SC, 6 pin Schlage® "C" Keyway - Standard
SFIC6, Small Format IC, with or without core available, 6 pin core
SFIC7, Small Format IC, with or without core available, 7 pin core
SLFIC, Schlage® large format IC less core
CLFIC, Corbin® large format IC less core
HS6, High security 6 pin with Townsteel® "L" Keyway
HS7, High security 7 pin IC core with Townsteel ® "L" Keyway
